Viktor Vaczi 31ff88ee9e tests: load-pcb e2e for microwave + pic_programmer demos ...

Adds an end-to-end test that drives File→Open in pcbnew, injects
the .kicad_pcb and .kicad_pro files into MEMFS at the dialog's
default starting directory, drives the menu + filename text input
+ Enter accept path, and screenshots the loaded board. Parametrized
for both kicad/demos/microwave (RF polygon footprints) and
kicad/demos/pic_programmer (full multi-IC layout).

Without the rtree fix bumped in via the kicad submodule, the load
would abort on every PCB at rtree.h:1771 Classify; the test asserts
no [RTREE-DIAG] line and no Aborted(. The post-load clipboard
RuntimeError in __asyncjs__js_clipboardHasText is a separate,
pre-existing wasm-port limitation that we explicitly do not regress
on here.

- tests/kicad/load-pcb.spec.ts: serial-mode parametrized spec
- tests/kicad/load-pcb-probe.spec.ts: one-shot diagnostic probe
  for inspecting wxFileDialog state on the canvas
- tests/kicad/utils/fs-inject.ts: FS.writeFile bridge from Node fs
- tests/kicad/utils/board-ready.ts: poll-for-no-dialogs readiness

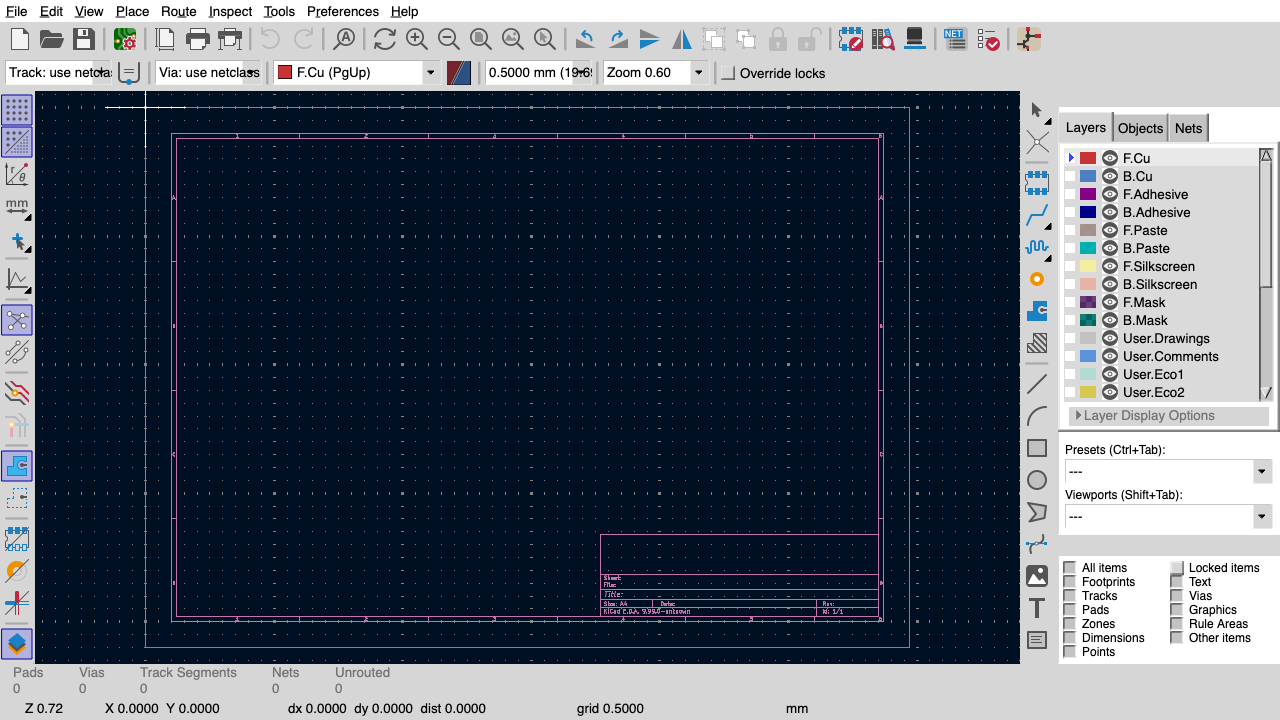

- tests/baseline-screenshots/load-pcb-*.png: 6 baselines covering
  both demos at pcbnew-ready / dialog-open / loaded states
- features/.../rtree-debug-findings.md: full diagnosis trail with
  an upstream-reportable summary the maintainer can lift verbatim
- kicad submodule bumped to 07d8130d44 (shape_poly_set rtree fix)

Co-Authored-By: Claude Opus 4.7 <noreply@anthropic.com>
